Patch cable not included.
Description

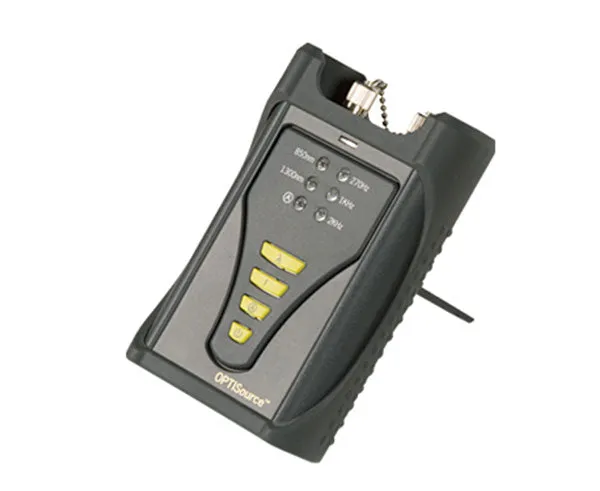

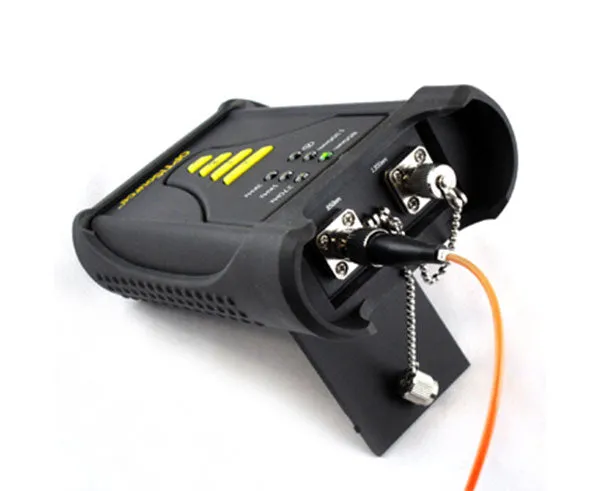

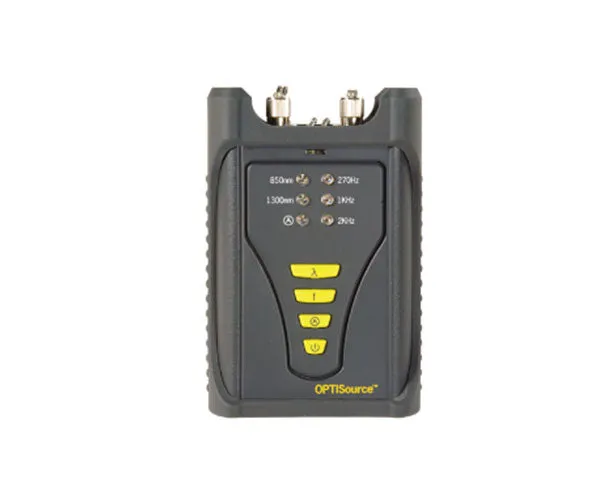

Fiber Optic Light Source for Wavelengths 850/1300 with FC/ST/SC Adapters
The OPTISource is a high performance stabilized light source that is widely used in fiber network installation and maintenance. The new version of OPTISource can provide the single wavelength output according to specific requirements including 850/1300nm wavelength for multimode. With replaceable FC, SC, ST connectors, this power meter brings you an economic and efficient solution for the fiber optic network tasks.
Features
- There are three output modes for each wavelength: CW/MOD/AUTO-IDENTIFY
- CW and 270Hz, 1kHz, 2kHz modulated signals
- Auto-identify wavelength indicator (Full compatibility with Hobbes Optical Power Meter to be use as a complete set)
- LED indicators
- Auto power off for power saving
Specifications
Wavelengths: 850nm, 1300nm
Spectral Width: ≤5nm
Output power: ≥13dBm@850/1300nm
Stability: ±0.25dB/8hr@850/1300nm
Connector Type: With replaceable FC, SC, ST connectors
Auto Power Off: 30 min. without key pressed
Frequency: 270Hz, 1kHz, 2kHz
Battery: 4 x AAA
Dimensions: 125 x 78 x 31mm
Weight: 145g
What's In The Box
- Qty 1 - OPTISource Fiber Multimode Light Source
